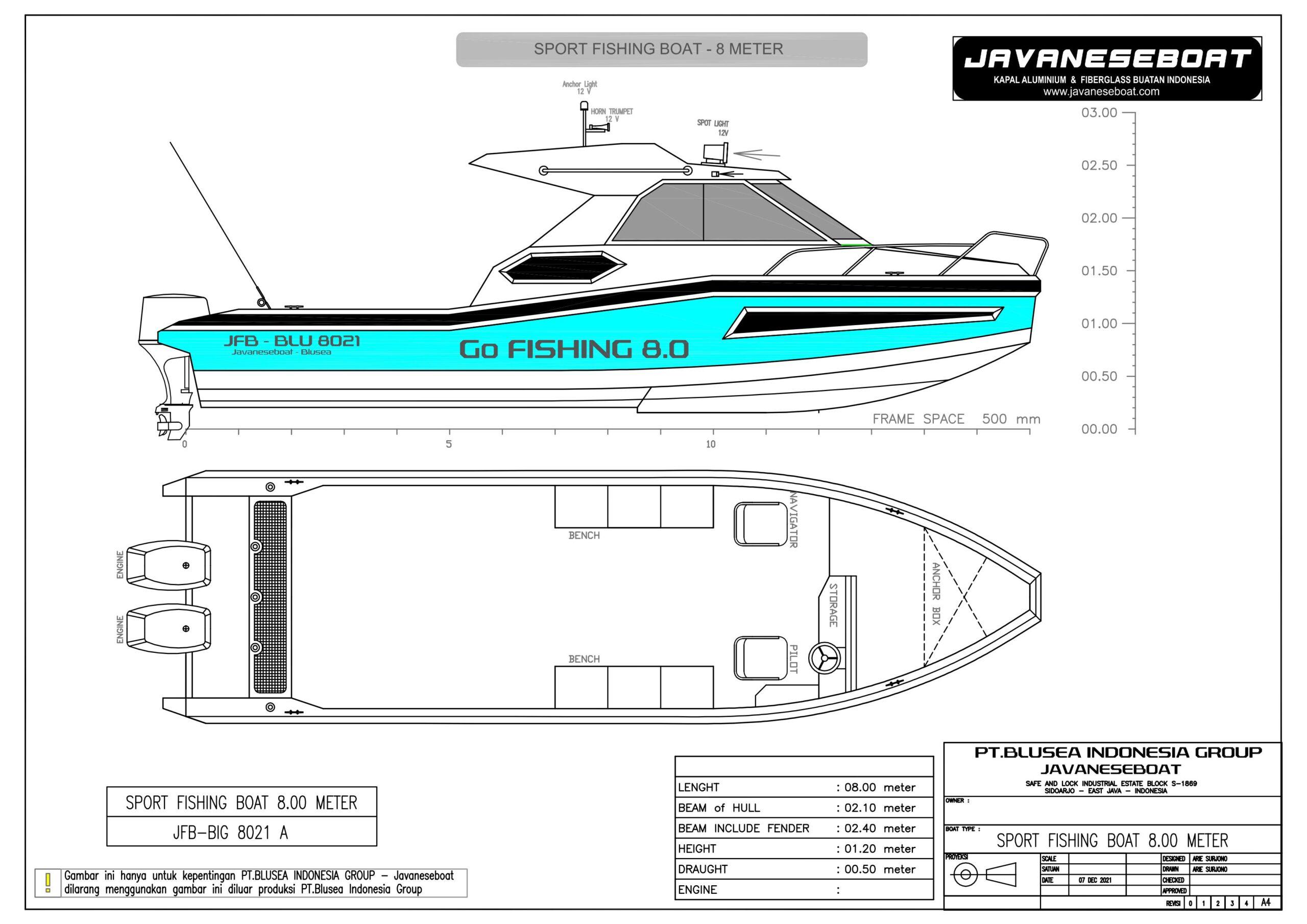

KAPAL MANCING 8 METER
KAPAL MANCING 8 METER
SPORT FISHING 8 METER
| UKURAN UTAMA | |||
| PANJANG [Length] | : | 8.00 | meter |
| LEBAR [Beam] | : | 2.20 | meter |
| TINGGI LAMBUNG [Height] | : | 1.10 | meter |
| SARAT [Draught] | : | 0.40 | meter |
| MESIN [Engine] | : | ||
| TAHUN [Years] | : | 2023 | |
| MATERIAL LAMBUNG FIBERGLASS | |||
| 1 | Bottom – 8 Lapis | ||
| 2 | Samping – 6 Lapis | ||
| 3 | Deck – 5 Lapis | ||
| Material Polyesther Resin Marine Grade | |||
| MATERIAL LAMBUNG ALUMINIUM | |||
| 1 | Bottom – 5 mm Aluminium Marine 5083 H116 | ||
| 2 | Samping – 4 mm Aluminium Marine 5083 H116 | ||
| 3 | Deck – 4 mm Aluminium Marine 5083 H116 | ||
| Cabin – 4 mm Aluminium Marine 5083 H116 | |||
| A | PERLENGKAPAN DECK | ||
| 1 | Bow Railing ss.304 dia 1″ | 1 | Set |
| 2 | Railing Atas ss.304 dia 1″ | 1 | Bh |
| 3 | Tiang Bendera | 1 | Bh |
| 4 | Hatch Lubang Jangkar | 1 | Bh |
| B | PERLENGKAPAN TAMBAT & LABUH | ||
| 1 | Cleat Pengikat Tali Jangkar | 1 | Bh |
| 2 | Cleat Pengikat Tali Tambat | 4 | Bh |
| C | INTERIOR & EXTERIOR | ||
| 1 | Kursi pilot | 1 | Bh |
| 2 | Kursi Navigator | 1 | Bh |
| 3 | Kaca Depan Tempered 5mm | 1 | Set |
| 4 | Kaca Samping Tempered 5 mm | 1 | Set |
| 5 | Kaca Samping Sliding samping | 2 | Set |
| D | SYSTEM PIPA DAN POMPA | ||
| 1 | Sistem Pengisian dan Distribusi BBm | 1 | Set |
| 2 | Sistem Pengisian dan Distribusi Air | 1 | Set |
| 3 | Bilge pump 2000 GPH | 1 | Bh |
| E | LAMPU NAVIGASI DAN PENERANGAN | ||
| 1 | Lampu Cabin | 4 | Set |
| 2 | Lampu Deck Belakang | 1 | Set |
| 3 | Lampu Sorot Depan | 1 | Set |
| 4 | Lampu Navigasi Merah Hijau , Putih | 1 | Set |
| F | KELISTRIKAN | ||
| 1 | Wiring System | 1 | Lot |
| 2 | Switch Panel | 2 | Bh |
| 3 | Battere Switch | 1 | Bh |
| 4 | Horn Trumpet | 1 | Bh |
| 5 | Wiper | 1 | Bh |
| G | ALAT KOMUNIKASI & NAVIGASI | ||
| NO | |||
| NO | |||
| H | TANK | ||
| 1 | Tanki BBM Cap.250 Ltr Aluminium 3 mm | 1 | Set |
| I | STEERING SYSTEM [ SISTEM KEMUDI ] | ||
| 1 | Hydraulic Steering System | 1 | Set |
| J | ALAT KESELAMATAN [SAFETY & APPARATUS] | ||
| NO | |||
FIBERGLASS VERSION
HARGA [ PRICE ]
| HARGA BODY BOAT + AKSESORIS [ POINT I ] + TANPA MESIN |
| HARGA : RP. 300.500.000 |
ALUMINIUM VERSION
| HARGA BODY BOAT + AKSESORIS [ POINT I ] + TANPA MESIN |
| HARGA : RP. 599.800.000 |
| TERM & CONDITION | TERM OF PAYMENT | |||
| 1 | Harga Validasi 30 hari | 1 | 30% | DP |
| 2 | Harga Diluar Pajak | 2 | 30% | Hull Lepas Cetak [Fiber] / Part Siap Rakit [Alu] |
| 3 | Harga tidak termasuk bea kirim | 3 | 30% | Start Install Accessories ( Kaca , Pintu , dll) |
| 4 | 4 | 10% | Before Delivery | |
| 5 | 5 | |||
| BUILDING TIME : 4 Bulan [ Months ] |
| WARRANTY : 6 MONTHS – Max 5% dari Harga Body |
